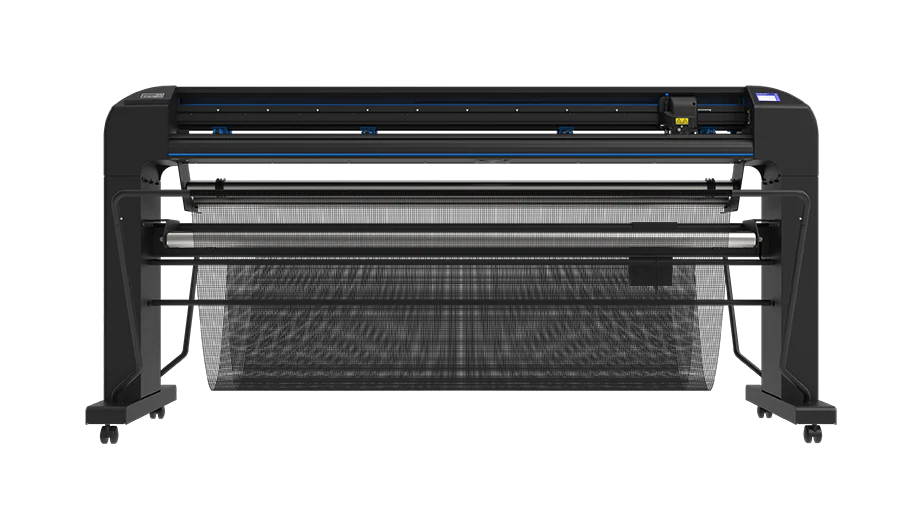

Built for vinyl & laminate, paint protection film and window tint, Summa S3 Series roll cutters feature first-class engineering and advanced cutting technology. Crafted for professionals demanding top-notch performance, pinpoint precision and unparalleled versatility, the S3 delivers True Tangential & drag-knife modes, OPOS Xtra registration, oversized media support and speeds up to 1 440 mm/s. Intuitive GoSign software, durable construction and time-saving features surpass even the most demanding user expectations.
Download CatalogueEvery Summa S Class 3 cutter includes GoSign – intuitive and powerful software built to optimise your cutting workflow. Configure action sets, automate barcode jobs, and achieve flawless results every time.
Explore GoSign
Tap any width below to explore its working area, key features and best-for applications.
This precision vinyl cutter uses a motorised back-and-forth knife head so it can handle paint protection film, window tint and reflective materials with pinpoint accuracy.
Optimise your plotter workflow by automatically choosing the best cut start points and panel large decals or laminates into neat panels for faster post-processing.
Our TC models are equipped to cut and crease or cut and draw printed graphics in one pass, eliminating tool changes and saving you time on signage and graphic jobs.
The optical positioning system reads 4 to 128 marks on any media so your plotter and cutter always hit perfect registration, every time.
Automatically rewind vinyl and laminates neatly onto the roll after cutting, letting you run long print-and-cut jobs unattended.
Boost your vinyl cutter’s throughput by up to 40 percent—faster registration mark scanning and cornering for high-volume graphic production.
Colour-coded components, a tri-coloured status bar and an ergonomic tool tray keep daily operation and maintenance simple and intuitive.
Manage vinyl, laminate, paint protection film and window tint cuts with GoSign’s intuitive interface—save and recall custom action-sets in seconds.
Holds 7.8″ diameter rolls up to 45 kg—ideal for long-run vinyl, laminates and large-format printed graphics.
Select between three dynamic cutting heads
Key dimensions, cutting capabilities and technical details for the Summa S Class 3 Series.
| Model | Dimensions (W × D × H) | Media Width | Max Cutting Area (Oversized Mode) | Pinch Rollers |
|---|---|---|---|---|
| S3 75 | 112 × 70.4 × 111.2 cm (44.1" × 27.7" × 43.8") |
6.1 – 83.8 cm (2.4" – 33.0") |
74.2 × 5000 cm (29.2" × 164 ft) |
3 |
| S3 120 | 187 × 69.1 × 111 cm (73.6" × 27.2" × 43.7") |
11.4 – 129.8 cm (4.5" – 51.1") |
120 × 5000 cm (47.2" × 164 ft) |
3 |
| S3 140 | 202.2 × 69.1 × 111 cm (79.6" × 27.2" × 43.7") |
17.0 – 144.8 cm (6.7" – 57.0") |
135 × 5000 cm (53.1" × 164 ft) |
4 |
| S3 160 | 225 × 69.1 × 111 cm (88.6" × 27.2" × 43.7") |
17.0 – 167.9 cm (6.7" – 66.1") |
158 × 5000 cm (62.2" × 164 ft) |
4 |
| Alignment Type |
OPOS X / OPOS Xtra OPOS CAM (optional, factory upgrade S75T & S160T) Barcode job recognition Up to 2 × 64 marks on X-line Y-line compensation |
| Tracking Performance |
±0.1 mm (±0.004") on: • Media < 76 cm: up to 12.1 m • Media > 76 cm: up to 4 m |
| Media Thickness | 0.05 – 0.25 mm / Up to 0.75 mm (sandblast drag) / Up to 1.2 mm (sandblast tangential) |
| Accuracy | ±0.2% of move or ±0.25 mm (whichever is greater) |
| Max Speed | Up to 142.2 cm/s (diagonal) |
| Acceleration | Up to 4.25 G (diagonal) |
| Knife Pressure | Drag: Up to 400 g / Tangential: Up to 1000 g |
| Pen or Creaser Pressure | Up to 1000 g |
| FlexCut | Yes (cut through capability) |
| Connectivity | Ethernet, USB, Wi-Fi |
| Power Requirements | 100–120 / 220–240 VAC, 50/60 Hz, 85 VA max |
| Included Software | Summa GoSign, Summa Cutter Control, Plug-ins for Illustrator, CorelDraw, MacSign |
| Cutting Technology | Drag knife / Tangential knife |
*Maximum cutting area listed in Oversized Mode. Tracking performance is not guaranteed in this mode. Dimensions are approximate and subject to change. Data from Summa 2024 S3 Brochure.
From pre-sales advice to ongoing technical support, our NSW and VIC-based team provides comprehensive service and guidance to ensure you get the most from your Summa S Class 3 Vinyl Cutter.
Get clear, expert recommendations on model selection, media compatibility, and workflow integration to suit your specific needs.
On-site installation ensures your cutter is calibrated for accurate tracking, tangential control, and barcode automation from day one.
Learn GoSign software, barcode workflows, OPOS alignment and media handling with hands-on sessions for your team.
With factory-trained technicians in NSW and VIC, we provide responsive support, remote assistance and scheduled maintenance across the country.
From vinyl and laminates to paint protection film, window tint and printed graphics, Summa S3 delivers pinpoint precision and effortless versatility. Complete the form below for a tailored quote, book a live demo or request expert guidance.
