The Summa S One Series is engineered for professionals ready to grow their business with a high-performance vinyl cutting machine. Designed for ease of use and operator comfort, it features an ultra-fast OPOS sensor system that quickly compensates for any distortion in your prints. With a 600-gram drag knife cutter, you can easily handle laminated media and complex sticker jobs with pinpoint accuracy using the OPOS Xtra mode.
The S One’s legendary Summa tracking system guarantees up to 8 metres of consistent, error-free feeding. Its titanium-coated grit rollers are built for years of heavy-duty use, while the GoSign software offers intelligent workflow control with minimal operator intervention. State-of-the-art engineering, user-friendly enhancements, and industry-leading reliability make the S One your top choice for precision vinyl cutting.

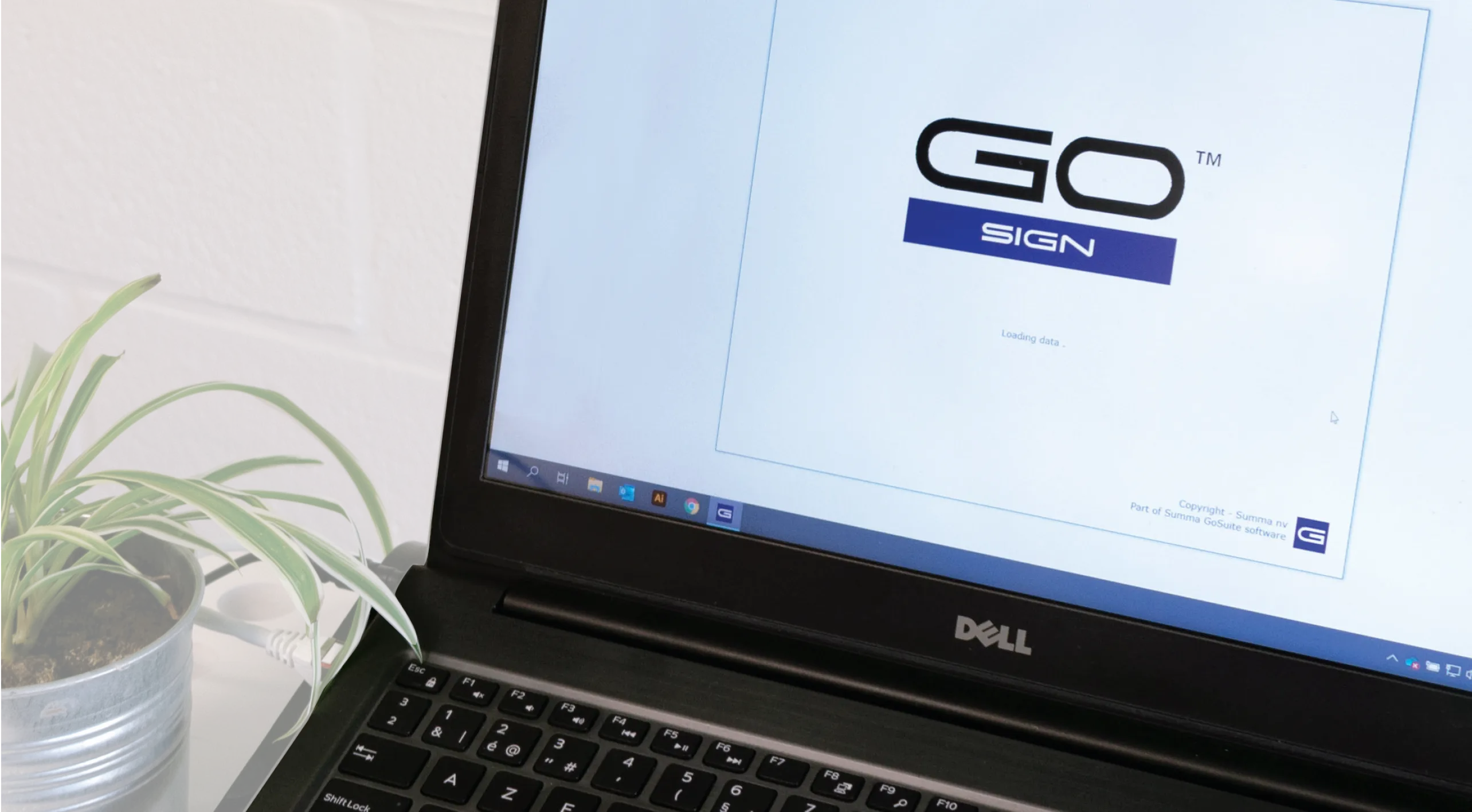

Download CatalogueEvery Summa S One cutter includes GoSign – intuitive and powerful software built to optimise your cutting workflow. Configure action sets, automate barcode jobs, and achieve flawless results every time.
Explore GoSign
Tap any width below to explore its working area, model highlights and application strengths.

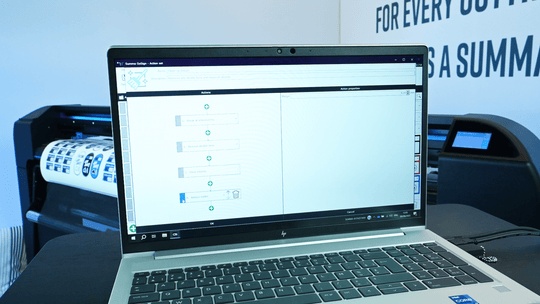

Designed for simplicity and flexibility, GoSign lets you customise workflows, create job-specific action sets, and streamline your cutting process with ease.
Automatically detects 4 to 128 marks and supports OPOS barcodes to enable fully automated contour cutting across multiple jobs.
Navigate menus quickly with an intuitive touchscreen that displays job data clearly and responds instantly to your commands.
The FlexCut feature enables perforated cuts that hold shape during feed but break apart easily after cutting—perfect for labels and packaging.
Thanks to MicroSprocket™ drive drums and servo motors, Summa S One models offer industry-leading tracking performance over long jobs.
Connect via Ethernet, USB or WiFi to streamline integration and reduce transfer times. Supports direct and networked control.

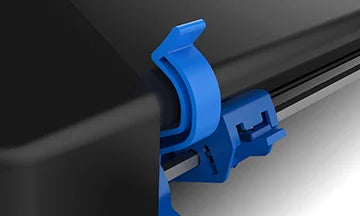

Colour-coded adjustment points make tool changes and setup faster, easier and more intuitive—ideal for frequent job switching.
Detects registration mark curvature with high accuracy, especially useful for small or detailed sticker cuts and bleed compensation.
Delivers top-tier cutting performance even on complex shapes, thanks to a robust servo drive that maintains precision at speed.

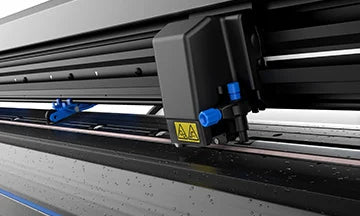

The Summa S One Series unites power and precision with a high-speed drag knife cutting head. With up to 600 grams of cutting force and intelligent design, it handles everything from intricate decals to thicker laminated materials.
This robust, all-in-one head is built for efficiency. Quick switches between blades, pens or pouncing tools are effortless, and the durable engineering means you can rely on consistent results job after job.
Straightforward. Resilient. Accurate. The S One drag head is ready for any challenge.
The Tray One enhances automation, simplifies media handling, and saves valuable time. Specifically designed for the Summa S One D60, it delivers continuous sheet cutting for hours, perfect for small-volume businesses and copy shops.
Learn More About Tray One

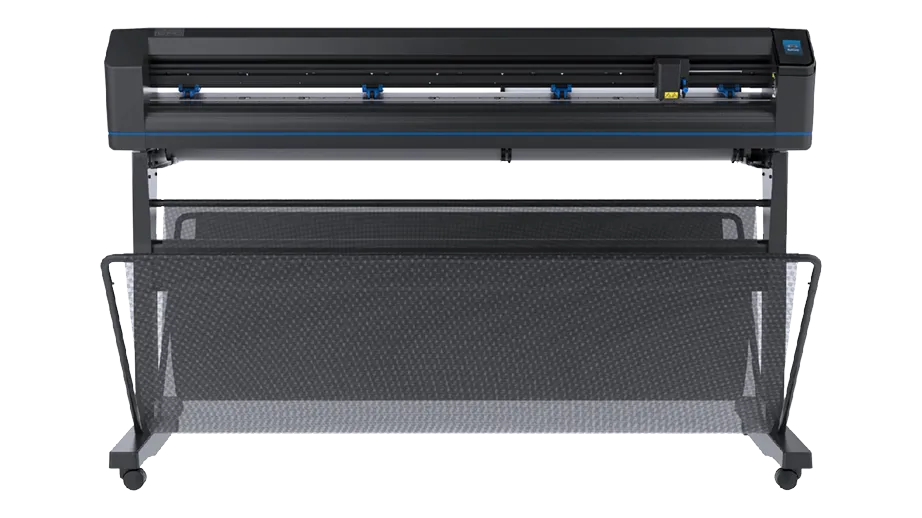

Technical highlights and dimensional capabilities of the Summa S One Series Vinyl Cutters.
| Model | Dimensions (W × D × H) | Material Width Range | Max Cutting Area (Oversized Mode) | Pinch Rollers |
|---|---|---|---|---|
| S One D60 | 99 × 34 × 111 cm (39" × 13.4" × 43.7") |
7.9 – 66 cm (3.1" – 26") |
59 × 5000 cm (23.2" × 164 ft) |
2 |
| S One D120 | 160 × 34 × 111 cm (63" × 13.4" × 43.7") |
12 – 130 cm (4.7" – 51.2") |
123 × 5000 cm (48.4" × 164 ft) |
3 |
| S One D140 | 181 × 34 × 111 cm (71.3" × 13.4" × 43.7") |
17 – 145 cm (6.7" – 57") |
137 × 5000 cm (53.9" × 164 ft) |
4 |
| S One D160 | 204 × 34 × 111 cm (80.3" × 13.4" × 43.7") |
17 – 168 cm (6.7" – 66.1") |
160 × 5000 cm (63" × 164 ft) |
4 |
| Cutting Technology | Drag knife standard, Tangential knife optional |
| Knife Pressure | Up to 600 g (drag) |
| FlexCut Function | Yes – for controlled perforation cuts |
| Alignment Type | OPOS X / OPOS Xtra, barcode job recognition, 2 × 64 mark detection, Y-line compensation |
| Tracking Guarantee | Up to 8 m for media < 762 mm wide / Up to 4 m for media > 762 mm wide |
| Maximum Speed | Up to 1131 mm/s diagonal |
| Acceleration | Up to 3 G diagonal |
| Connectivity | Ethernet, USB, Wi-Fi (region dependent) |
| Software Included | Summa GoSign, Plug-ins for Illustrator & CorelDraw |
| Power Requirements | 100–240 VAC, 50/60 Hz |
*All measurements and specifications are sourced from the official Summa 2024 S One Series Brochure. Specifications are subject to change without notice. Maximum cutting areas listed in oversized mode. Tracking performance not guaranteed in this mode.
From pre-sales advice to ongoing technical support, our NSW and VIC-based team provides comprehensive service and guidance to ensure you get the most from your Summa S One Vinyl Cutter.
Get clear, expert recommendations on model selection, media compatibility, and workflow integration to suit your specific needs.
On-site installation ensures your cutter is calibrated for accurate tracking, blade control, and barcode automation from day one.
Learn GoSign software, barcode workflows, OPOS alignment and media handling with hands-on sessions for your team.
With factory-trained technicians in NSW and VIC, we provide responsive support, remote assistance and scheduled maintenance across the country.
Engineered for reliability, precision, and ease of use, the Summa S One Series is built for professionals cutting vinyl, laminated media, stickers, PPF, and more. Fill out the form below to request a personalised quote, schedule a live demo, or speak with our Summa experts.
