Roland TrueVis AP-640
Latex Printer
The premium 4-colour large format latex printer that delivers superior quality, consistency, and reliability over the rest.
Enquire Today
Discover the Roland TrueVIS AP-640 Latex Printer
The Roland TrueVIS AP-640 represents the next evolution in latex printing technology, delivering exceptional quality, consistency, and reliability in a single device.
Featuring dual, staggered Piezo printheads with variable dot printing and True Rich Color presets, the AP-640 produces vibrant, natural-looking graphics with precise colour saturation.
Utilising water-based TrueVIS latex inks, this printer ensures instant drying, scratch resistance, and low VOC emission performance across a wide range of coated and uncoated media.
Streamline your workflow with a 7-inch full-colour touchscreen, high-capacity 700 ml ink pouches, and a high-productivity dryer unit that handles prints swiftly before the next process.
Seamlessly integrated with VersaWorks 6 RIP software and the Roland DG Connect App, the AP-640 maintains print accuracy with optical registration and automatic media calibration for uninterrupted production.
Download Product BrochureRoland TrueVIS AP-640 at a Glance – Features You’ll Love
Wide-Format Latex Printing
Full 64″ (1625 mm) print width with water-based latex inks for indoor and outdoor durability.
Variable Dot Technology
Dual, staggered Piezo printheads with 6 pl–30 pl variable-dot sizes for ultra-sharp detail and smooth gradients.
GREENGUARD Gold Certified Inks
TrueVIS water-based latex inks deliver vibrant, scratch-resistant prints with low VOC emissions.
Instant Dry Performance
Integrated high-productivity dryer unit cures prints instantly for immediate finishing or lamination.

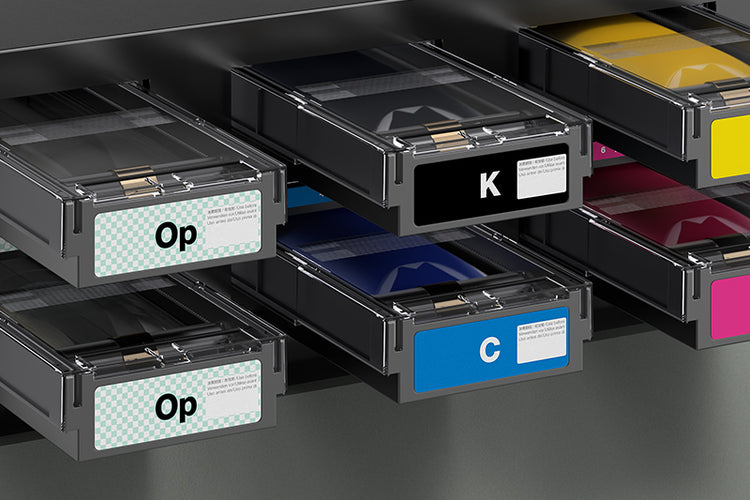

Large-Capacity Ink Pouch System
700 ml ink pouches with front-loading design minimise downtime and simplify ink changes.
Optical Registration & Auto-Calibration
Built-in sensors automatically align and tension media, ensuring perfect registration on long runs.
VersaWorks 6 RIP Software
Powerful RIP with nesting, variable data, True Rich Colour presets and native PDF 2.0 support.
Roland DG Connect Integration
Cloud-based monitoring for real-time device status, maintenance alerts and consumables tracking.
Explore the Roland TrueVIS AP-640
The AP-640 delivers versatile large-format latex printing, combining water-based ink performance, instant-dry output and eco-friendly certification in a robust 1625 mm (64″) platform.

Roland TrueVIS AP-640
-
Max Print Width:
1625 mm (64″) -
Control Panel:
7″ full-colour touchscreen -
Ink Configuration:
CMYK (TrueVIS water-based latex inks) -
Max Speed:
Up to 36.1 m²/hr (540 × 720 dpi) -
Software:
VersaWorks 6 RIP -
Connectivity:
Ethernet, USB, Roland DG Connect App -
Media Handling:
Optional take-up unit & adjustable pinch rollers
Advanced Features That Set the AP-640 Apart
Every element of the Roland TrueVIS AP-640 is engineered for vibrant, efficient, and eco-friendly latex printing.

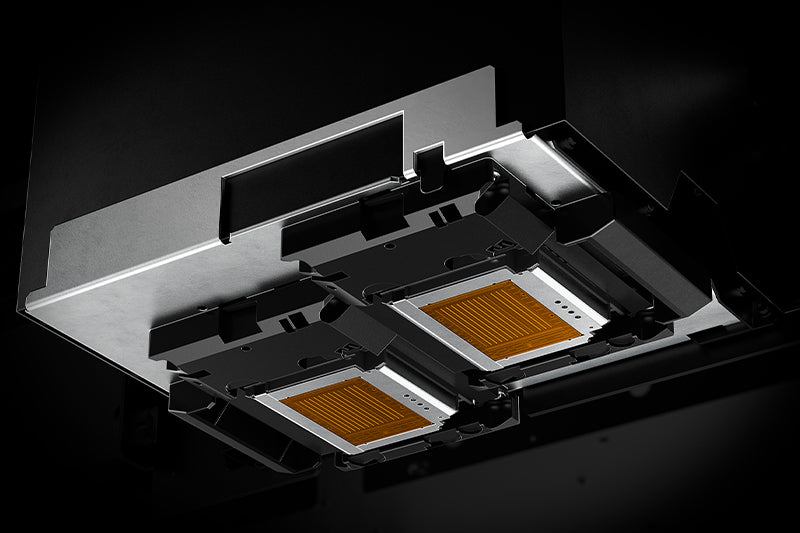

Variable-Dot Piezo Printheads
Dual, staggered Piezo heads (6 pl–30 pl) deliver ultra-sharp detail and smooth colour transitions across every print.

TrueVIS Water-Based Latex Inks
Instant-dry, GREENGUARD Gold certified inks with low VOC emissions, for durable indoor and outdoor applications.

Integrated High-Productivity Dryer Unit
Adjustable-temperature dryer cures prints instantly, so you can finish or laminate without delay.

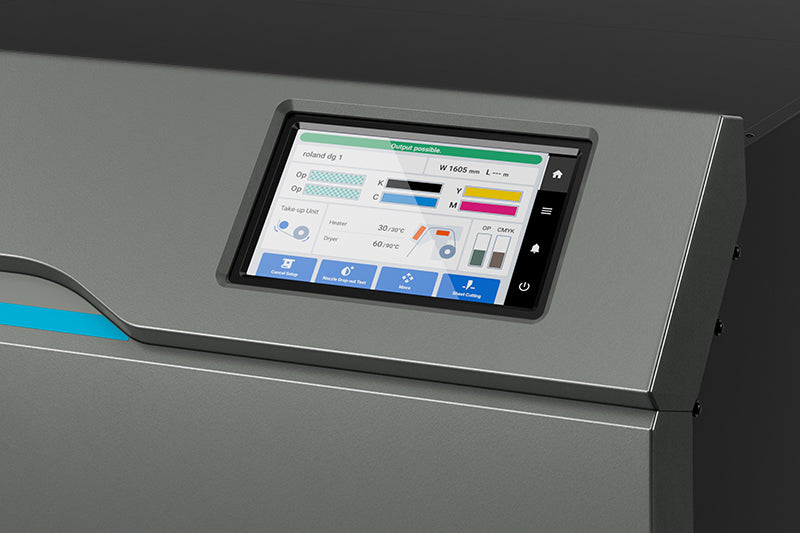

Intuitive 7″ Full-Colour Touchscreen
Launch presets, monitor ink levels, and adjust settings with a bright, responsive control panel.

Connected Workflow via VersaWorks 6 & DG Connect
Powerful RIP tools plus cloud-based monitoring and maintenance alerts keep production running smoothly.
The Lowest Operating Costs of Any Latex Printer. Ever.
The AP-640 is engineered to maximise output while minimising running costs. Featuring high-capacity ink pouches and quick-drying latex inks, the printer enables your business to produce more with less, and saves you thousands in maintenance and consumables.
Superior Quality
You Can Rely On

The Widest Colour Gamut in Its Class
TA Inks boast the widest gamut and most vibrant colours of any 4-colour latex wide-format printer. The True Rich Colour 3 print setting maximises the potential of the printer and inks, allowing you to produce highly impactful graphics that combine vivid colours and natural tones.

Spot Colours That Are Spot-On
The AP-640 offers precise colour reproduction to match brand hues—even those traditionally difficult. Over 300 media profiles are ready for use, from vinyl and wallpaper to canvas and heat-transfer paper.

Natural Beauty and Vividness
Produce natural beauty never before seen in a latex printer. Hundreds of media-specific profiles optimise ink volume and drying temperature, while variable-dot technology delivers unparalleled image quality.
Why Pozitive Is the Right Partner for the Roland TrueVIS AP-640
As an official Roland partner with factory-trained technicians in NSW and VIC, Pozitive provides complete end-to-end service for the TrueVIS AP-640 – from expert consultation through to certified installation, hands-on training, and ongoing technical support.
Tailored AP-640 Consultation
Get expert advice on AP-640 configuration, ink selection, and workflow optimisation – all customised to your production needs.
Certified AP-640 Installation
Installed by Pozitive’s Roland-certified technicians to ensure optimal setup, colour calibration and reliable media handling.
Hands-On AP-640 Training
Learn to master the AP-640—from touchscreen controls and VersaWorks setup to media loading and advanced colour management.
Local AP-640 Support
From software to hardware, our in-house Roland-trained technicians across Australia are here to keep your AP-640 running at peak performance.
Specifications Overview
Key specifications for the Roland TrueVIS AP-640 large-format latex printer—precision, performance, and reliability in a robust 1,625 mm (64″) platform.
Production Speeds
Print Mode | AP-640 |
---|---|
Standard Mode | 14.7 m²/hr |
High-Speed Mode | 29.1 m²/hr |
Speeds are measured in standard print modes; actual throughput may vary depending on media, RIP settings, and application type.
Print with Confidence
Roland TrueVIS AP-640
The Roland TrueVIS AP-640 sets a new benchmark in large-format latex printing. Built for production professionals, the AP-640 delivers vibrant colours, instant-dry performance, and eco-friendly operation – all backed by Pozitive’s Roland-trained team. Use the form below to request pricing, book a demo, or speak with an AP-640 specialist.
- Request a Custom Roland AP-640 Quote
- Book a Live AP-640 Demonstration
- Get Advice from Roland-Certified Experts
