High-Speed Roll-to-Roll UV Printing

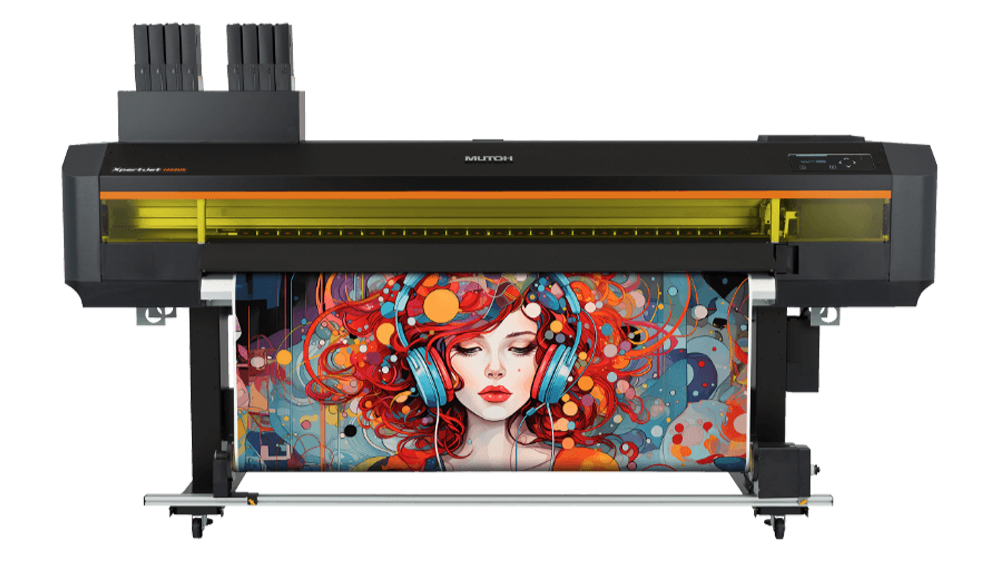

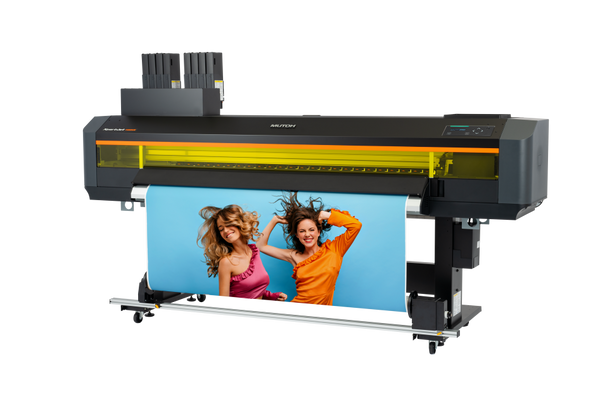

MUTOH XPJ-1682UR roll-to-roll UV Printer

Introducing the Mutoh Xpertjet 1682UR UV roll-to-roll printer

The Mutoh ValueJet 1682UR is a high-performance UV roll-to-roll printer, designed for flexible media applications with exceptional colour accuracy, fast speeds, and instant UV curing. With a 1625mm (64") print width, dual print heads, and advanced LED UV technology, this printer delivers vibrant, durable prints on a variety of materials, including vinyl, wallpaper, textiles, and backlit films.

Key features

  • Large 1625mm (64”) Print Width – Perfect for wide-format applications.
  • Dual Print Heads – Fast, high-resolution output with multi-layer printing.
  • Six Colours (CMYK + White + Varnish) – Exceptional vibrancy and special effects.
  • Instant UV LED CuringDry immediately for quick turnaround and scratch-resistant prints.
  • Next-Gen UV Ink – SVHC & CMR free, stretchable, and compatible with various media types.
  • Automated Nozzle Check Unit – Reduces downtime and improves print efficiency.

ENQUIRE NOW

Key features

  • Large 1625mm (64”) Print Width – Perfect for wide-format applications.
  • Dual Print Heads – Fast, high-resolution output with multi-layer printing.
  • Six Colours (CMYK + White + Varnish) – Exceptional vibrancy and special effects.
  • Instant UV LED CuringDry immediately for quick turnaround and scratch-resistant prints.
  • Next-Gen UV Ink – SVHC & CMR free, stretchable, and compatible with various media types.
  • Automated Nozzle Check Unit – Reduces downtime and improves print efficiency.

ENQUIRE NOW

APPLICATIONS

  • Wall Graphics & Interior Décor – Print on wallpaper, self-adhesive vinyl, and textiles.
  • Backlit Displays & Films – Perfect for high-contrast, illuminated signage.
  • Window & Vehicle Graphics – Stunning multi-layer white ink printing for transparency effects.
  • Roll-to-Roll Media – Ideal for banners, POS materials, and flexible signage.

ENQUIRE NOW

APPLICATIONS

  • Wall Graphics & Interior Décor – Print on wallpaper, self-adhesive vinyl, and textiles.
  • Backlit Displays & Films – Perfect for high-contrast, illuminated signage.
  • Window & Vehicle Graphics – Stunning multi-layer white ink printing for transparency effects.
  • Roll-to-Roll Media – Ideal for banners, POS materials, and flexible signage.

ENQUIRE NOW

Why Choose the Mutoh XpertJet 1682UR?

The XPJ-1682UR is engineered for businesses demanding speed, flexibility, and premium print quality. Whether you’re a sign shop, interior décor specialist, or industrial manufacturer, this UV roll-to-roll printer delivers unmatched performance, colour depth, and durability.

ENQUIRE NOW

Why Choose the Mutoh XpertJet 1682UR?

The XPJ-1682UR is engineered for businesses demanding speed, flexibility, and premium print quality. Whether you’re a sign shop, interior décor specialist, or industrial manufacturer, this UV roll-to-roll printer delivers unmatched performance, colour depth, and durability.

ENQUIRE NOW

Mutoh XPJ-1682UR – Technical Specifications

  • Technology:UV LED Roll-to-Roll
  • Print Heads:Dual staggered 8-channel monoblock heads
  • Ink Type:US11 UV LED Inks (GREENGUARD Gold certified)
  • Ink Colours:2x CMYK or CMYK + White + Varnish
  • Drying System:Dual long-life 4” UV LED lamps
  • Instant Cure:Yes – ready for finishing right off the printer
  • Max Print Width:1615mm
  • Media Width:Up to 1625mm
  • Compatible Media:Vinyl, banner, canvas, wall covering, PP, PE, PET, paper, backlit film, heat-sensitive substrates
  • Resolution:Up to 1440 x 1440 dpi
  • Multi-Layer Printing:3-layer, 4-layer, 5-layer capability including white and varnish
  • Power Requirements:Standard 240V
  • Energy Usage:Low – no heated platen or external dryer required
  • Connectivity:Ethernet
  • Printer Width:Approximately 2960mm
  • RIP Software:Mutoh VerteLith RIP
  • Environment:VOC-free, no filtration system required

XPJ-1682UR
True Roll-to-Roll UV Brilliance

Unlock vibrant colour, instant dry-time, and multi-layer magic with Mutoh’s high-performance 64” UV LED printer. Print on almost anything – with white ink, varnish, and layered effects.

Let’s talk about how the XPJ-1682UR can transform your production.
