Swing-Away & Pull-Out Drawer
Swing-away upper platen with slide-out drawer keeps hands clear of heat, making loading safer and faster.
HeatriX S+
Electric Swing-Away Heat Press
Auto-open, electric drive, swing-away motion with a slide-out drawer for a cooler workspace, faster loading, and consistent results. Threadable lower platen and quick-swap options keep jobs moving.
Enquire Today

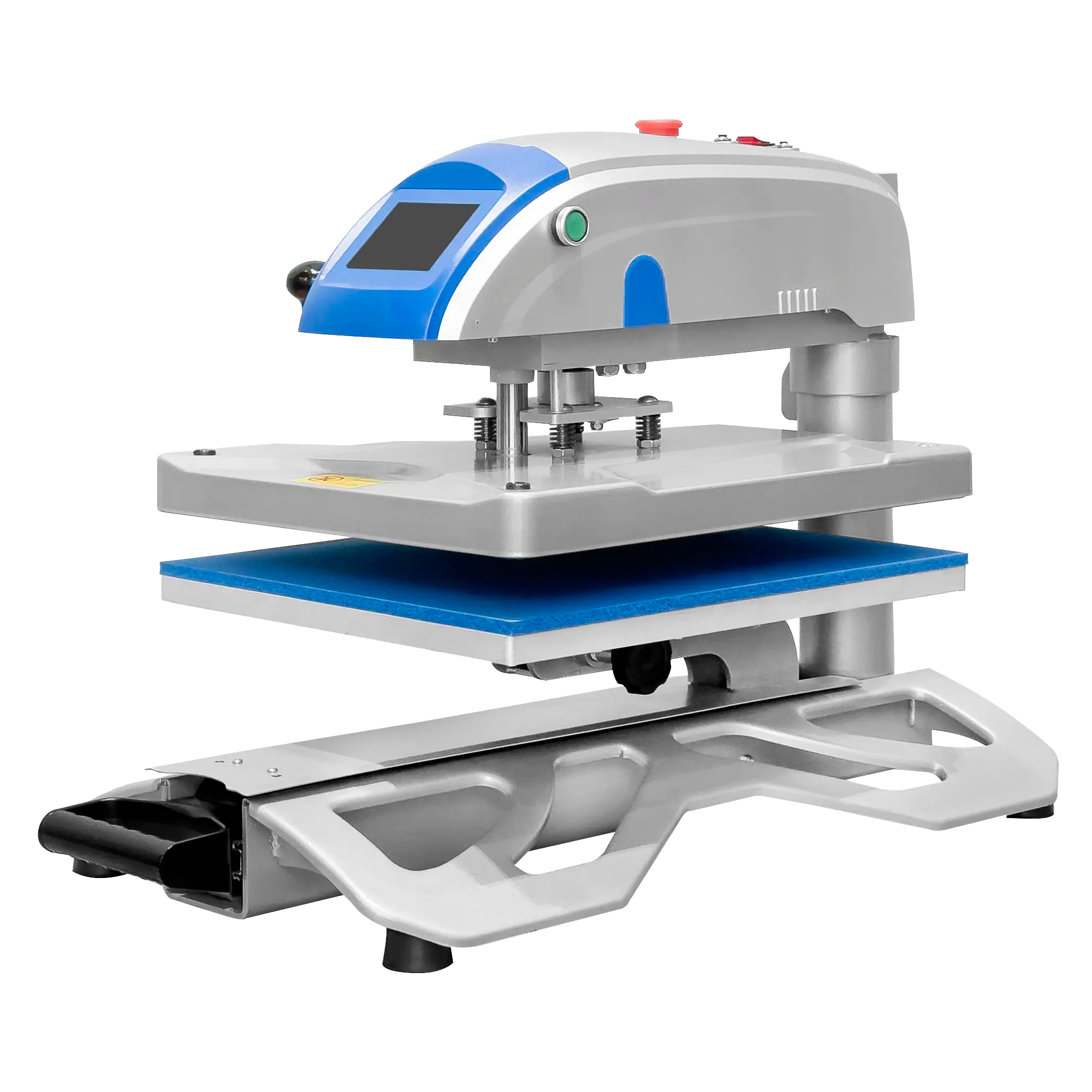

Introducing the HeatriX S+ Swing-Away Heat Press
The HeatriX S+ is designed for businesses that demand maximum safety, control, and versatility. With its electric drive and auto-open swing-away motion, it ensures smooth operation while keeping your hands clear of heat.
Featuring a slide-out drawer, the S+ makes loading garments quick and accurate, while the digital LCD touchscreen controller provides precise temperature and multi-timer functionality for consistent results.
The 40×50 cm platen offers even heat distribution across t-shirts, hoodies, bags, and sublimation blanks. Plus, the threadable and interchangeable lower platens make it easy to handle sleeves, pockets, and unique shapes.
Built with ergonomic design and a powerful electric mechanism, the HeatriX S+ delivers reliable performance day after day—perfect for high-volume production and professional studios.
Features That Set HeatriX S+ Apart
Electric swing-away motion, a slide-out drawer, and precise digital control, built for safe, consistent, high quality transfers.
Versatile Applications
Suitable for sublimation and most transferable products, including HTV and transfer papers, trim-free laser papers, and more. A flexible workhorse for shops that handle mixed workflows.
Electric Technology, Compressor-Free
Patent electronic drive delivers quiet operation with digitally set, even pressure, up to a maximum of 400 g/cm². Enjoy smooth cycles and less operator fatigue without a compressor.
Safety and Stability
Built with qualified electrical components for stable performance and safety. Certified to CE and UKCA standards, designed for dependable production day after day.
Swing-Away and Pull-Out Drawer
Swing the upper platen clear for 360° access, then load garments on the slide-out drawer with space to thread and align. A magnetic assist helps keep the drawer steady during threading and pressing.
Additional Features of HeatriX S+
Engineered with smart safety and productivity features, the HeatriX S+ Electric Swing-Away delivers precision, consistency, and versatility for any production setup.
Threadable & Interchangeable Base
Quick-swap base lets you rotate or thread garments with ease, or change platens in seconds for different jobs.

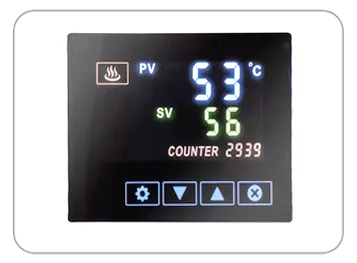

Advanced LCD Controller
Precise temperature and timer control with multi-mode settings, standby function, and clear digital readout.
Triple Thermal Protection
Multiple thermal protection devices ensure safe operation by preventing overheating and abnormal conditions.
Pop-Out Controller
Easy-to-replace pop-out control panel simplifies servicing and ensures quick recovery from downtime.
16×20" Heat Platen
Large 40×50 cm platen size gives consistent coverage across a wide range of garments and substrates.
145° Swing Angle
Wide swing angle keeps the workspace open and comfortable for quicker, safer garment positioning.
Two-Hand Safety Operation
Dual-hand safety operation ensures the press only closes intentionally, reducing accidental activation.
Accepts Thick Items
Works with substrates up to 50 mm (1.97") thick, expanding versatility for a range of products.
Four Support Springs
Balanced spring system distributes pressure evenly across the platen for consistent results every time.
Protective Cap
Protective cap design adds safety by reducing accidental contact with hot surfaces and components.
Changeable Platens
Optional platens available for sleeves, baby clothes, shoes, labels, and more—making it highly versatile.
Why Pozitive supports your HeatriX S+ investment
We don’t just sell the HeatriX S+ Electric Swing-Away Heat Press, we back it with practical advice, helpful resources, and responsive local support so you can press with confidence.
Expert Pre-Sales Advice
Friendly guidance to help you choose the right platen options, accessories, and workflow for your jobs and budget.
Setup Resources
Easy-to-follow guides, quick-start tips, and documentation to make unboxing, setup, and day-to-day operation simple.
Training & Best Practices
Practical tips on pressure, time, and temperature settings for common substrates, plus maintenance and safety pointers.
Local Ongoing Support
Australian-based help for troubleshooting, parts, and advice. We support your team long after purchase (installation available via partners on request).
Specifications Overview
Key specifications for the HeatriX S+ Electric Swing-Away Heat Press – engineered for precision, safety, and versatile heat transfer applications.
Key Specifications
| Heat Press Style | Electric |
| Motion Available | Swing-away / Slide-out Drawer |
| Heat Platen Size | 40 × 50 cm |
| Voltage | 110V or 220V |
| Power | 1800 – 2200 W |
| Controller | Screen-touch LCD Panel |
| Max. Temperature | 450°F / 232°C |
| Timer Range | 0 – 999 seconds |
| Machine Dimensions | 81.5 × 43.5 × 57 cm |
| Machine Weight | 63 kg |
| Shipping Dimensions | 86.5 × 54.5 × 72.5 cm |
| Shipping Weight | 68 kg |
| Certifications | CE / RoHS compliant |
| Warranty | 1 Year full warranty |
| Support | Lifetime technical support |
Press with Confidence
HeatriX S+ Electric Swing-Away
The HeatriX S+ Electric Swing-Away Heat Press pairs a slide-out drawer, precise LCD control, and a 40 × 50 cm platen for fast, consistent results. Backed by Pozitive support, you get clear advice, easy setup resources, and friendly help when you need it. Use the form below to request pricing, book a quick demo, or ask a specialist for guidance.
- Request a custom HeatriX S+ quote
- Book a live demo with our team
- Get advice on platens, settings, and workflow
